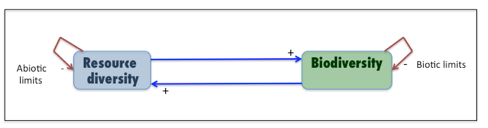

What is the relationship between the diversity of resources (e.g., space, sunlight, water, nutrients) and biodiversity? In most cases it is direct and positive—that is, the greater the diversity of resources the greater the biodiversity.  The relationship is also often mutually reinforcing—that is, byproducts, detritus, and the organisms themselves increase the diversity of the resource base. Of course, ultimately both resource and biodiversity are limited by both abiotic and biotic controls. The relationships look something like this:

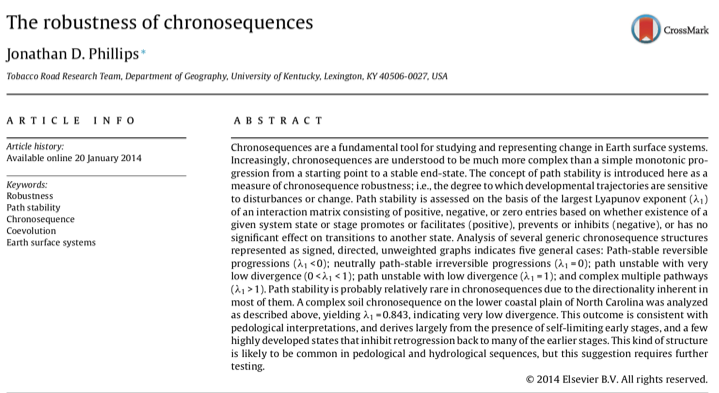

The latest issue of Ecological Modelling (vol. 298) is out, a special issue on complexity of soils and hydrology in ecosystems. My article, The Robustness of Chronosequences, is available here. There's a lot of other interesting stuff in the special issue, too. Check it out!

A number of theories in geomorphology, ecology, hydrology, etc. are based on the idea that Earth surface systems (ESS) develop according to some optimal principle or goal function. That is, the ESS develops so as to maximize, minimize, equalize, or optimize some quantity—energy, exergy, entropy, work, mass flux, etc.  Some of these notions have some explanatory power and have resulted in some important insights. However, they have always bothered me--no one has ever been able to convince me that there is any inherent, a priori, rule, law, or reason that, e.g., a hillslope or a stream channel or a soil would operate so as to optimize anything. The conservation laws for mass, energy, and momentum are the only laws of nature that absolutely must hold everywhere and always.

So how does one explain the apparent success of some optimality principles in describing, and even predicting, real ESS behavior?

Suppose we use P to represent possible developmental pathways for an ESS. An optimality principle is essentially arguing that a particular P among all those possible is the most likely¹. But the sufficient conditions for a particular path need not invoke any extremal or optimal goal functions.

Not too long ago (Phillips, 2014) I proposed that many geomorphic systems are characterized by divergent behavior driven by either self-reinforcing feedbacks, or by “competitive” mutually-limiting relationships. However, this divergent evolution cannot continue indefinitely, and is ultimately limited by some sort of thresholds. Watts et al. (2014) recently published a paper that I think provides a good example of this sort of behavior a bit different from the ones I cited.

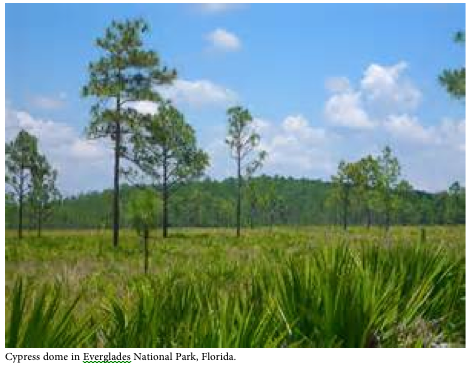

In a low-relief karst wetland landscape in Florida, they found that feedbacks among vegetation, nutrient availability, hydroperiod, and rock weathering (dissolution) result in formation of isolated forested wetland depressions (cypress domes) amongst prairie-type wetlands. However, as the cypress dome (they are called domes because of the taller canopies, despite the depressional landform) features grow, water volume thresholds limit further growth.

Phillips, J.D., 2014. Thresholds, mode-switching and emergent equilibrium in geomorphic systems. Earth Surface Processes and Landforms 39: 71-79.

Here in the University of Kentucky physical geography program, we have a regular weekly meeting called BRAG (Biogeomorphology Research & Analysis Group) in which various faculty and graduate students from geography and other programs cuss, discuss, debate, and speculate about a wide range of topics centered on geomorphology-ecology interactions. A couple of years ago we focused quite a bit on the biogeomorphic ecosystem engineering effects of invasive species. That led to development of a review paper, which at long last was published, in the Annual Review of Ecology, Evolution, and Systematics—The biogeomorphic impacts of invasive species. The co-authors are myself, Songlin Fei, and Michael Shouse. Songlin, now at Purdue University, was then in the Forestry department at UK, and a regular participant in BRAG. Michael, now at Southern Illinois University-Edwardsville, was then a geography PhD student here.

The abstract is below, and a ScienceDaily news release is here: http://www.sciencedaily.com/releases/2014/12/141211115522.htm

Natural selection is most familiar with respect to Darwinian evolution. However, though some biologists will argue that selection acts only on genes, this is a very narrow and restricted view. Selection operates on a variety of environmental phenomena, and at a variety of scales. In hydrology and geomorphology, the principle of gradient selection dictates that the most efficient flow paths are preferred over less efficient ones, and that these paths tend to be reinforced. That’s why water flows organize themselves into channels (more efficient than diffuse flows), and channels into networks. The principle of resistance selection in geomorphology is simply that more resistant features will persist while less resistant ones will be removed more quickly. Thus geomorphic processes select for certain forms and features and against others. Among others, Gerald Nanson, Rowl Twidale, and Luna Leopold have written on selection in geomorphology, and Henry Lin, among others, in hydrology.

Principle of gradient selection at work--Board Camp Creek, Arkansas

Resistance of environmental systems is their capacity to withstand or absorb force or disturbance with minimal change. In many cases we can measure it based on, e.g., strength or absorptive capacity. Resilience is the ability of a system to recover after a disturbance or applied force to (or toward) its pre-disturbance condition—in many cases a function of dynamical stability. In my classes I illustrate the difference by comparing a steel bar and a rubber band. The steel bar has high resistance and low resilience—you have to apply a great deal of force to bend it, but once bent it stays bent. A rubber band has low resistance and high resilience—it is easily broken, but after any application of force short of the breaking point, it snaps back to its original state.

Yesterday I heard a very interesting river restoration workshop at the British Society for Geomorphology meeting. What I’m about to discuss was not the focus of the workshop, but it was triggered by thinking about geomorphology, hydrology, and river science in stream rehabilitation and restoration, which is a big business now.

The stream restoration problem is often portrayed as something like this:

That is, the stream is currently in some kind of degraded, suboptimal, unwanted state. The goal is to restore it to a “natural” or some more desired condition, often conceived as whatever the stream was like before the degradation commenced. There are a number of problems with this, one being that in many cases the pre-existing state is not known. Even if it is, since rivers—like other landforms and ecosystems—are dynamic and changeable, there is no particular scientific reason to believe that, in the absence of human-driven changes, the river would still be now as it was decades ago.

One of my major research interests is the coevolution of soils, landforms, and biota. I’ve been working in this area pretty steadily since about 2000, but until 2013 I was completely unaware of some work being done along the same lines, over about the same time period. This is the work of W.H. Verboom and J.S. Pate from Western Australia, who among other things developed the “phytotarium concept.” Phytotarium defines the specific plants and microbial associates driving specific pedological changes during niche construction. This concept, and a wealth of work on biogenic origins of pedological and geomorphological features such as clay pavements, texture-contrast (duplex, as they call them in Australia) soils, and laterites, was highly relevant to my own thinking (e.g., Phillips, 2009a; 2009b), but though I consider myself familiar with the biogeomorphology and pedogenesis literature, then and now, I had somehow missed it.

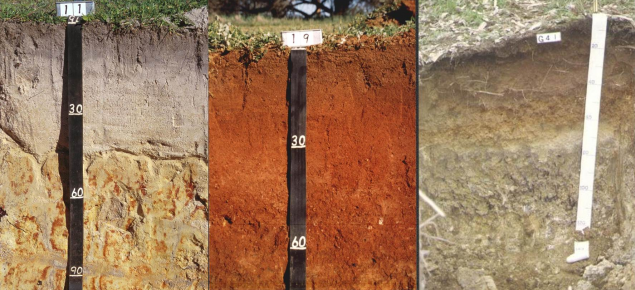

Deep sandy duplex (vertical texture contrast) soils, Western Australia. Photo credit: Dept. of Agriculture & Food, Western Australia.
